Combining Cartridge Valves to Create a Versatile Flow Divider

Posted by David Price on Thu, Mar 17, 2011 @ 14:03 PM

Are you looking for an alternative for your Flow Divider circuit that will address the issues of multiple division, irregular percentage splits, adjustable ratios, inlet flow variance versus accuracy and pressure drop?  If so, an alternative works for dividing pump flow only.  If you need combining too, you might have to stick with the traditional flow divider / combiner (or read next week’s article to see a combining solution).

Flow Divider

Flow dividing circuits are used in many mobile applications to make full use of a varying input flow.  Spool type dividers can be integrated into manifolds and are available in many sizes and fixed ratios.  Although they can be cascaded, they are individually limited to a 2-way split.  The valve ratios (i.e. 50/50 or 20/80) are fixed and factory preset by varying each spools flow specifications.

In some applications, the division of flow may need to suit specific actuators with irregular ratios, a multiple or uneven number of splits may be required or even the ability to fine-tune the system in the field without losing accuracy.  Standard spool type flow dividers make addressing these application issues almost impossible.

An alternative method of flow division that DOES address these issues can be achieved by using separate low cost cartridge valve elements.  If your system requires any or all of these features, then keep reading.

Advantages of using Logic Elements as a Flow Divider:

- Multiple divisions: any practical number of legs – even odd numbers.

-  Irregular percentage split: not dictated by the factory pre-set ratios due to divider spools.

-  Adjustable ratio

-  Adjustable max flow - with the use of reducing orifice in the LS line (see next week’s post for more details)

-  Higher flow requirement than most spool type flow dividers: Flow is now limited by the EP cartridge element and control orifice

-  Consistency:  Even with high input flow variance due to engine RPM

-  Accurate (compensated) trimming can be achieved: due to hydraulic motor leakage etc.

-  Higher pressure drop tolerance

-  Versatile: high flow switching via pilot line

-  Prototype versatility – easy to make adjustments

This option does have a few limitations:

-  Cost – This option is only more costly if combing is still required. (But this too can depend on the application, see next week’s example.)

-  Slightly Less Accurate - *In very low flow systems where the highest load can change to different legs.  (Read next weeks post for an example of a low flow systems.)


Under normal circumstances, the higher loads lose pressure compensation as the pump pressure falls below (load pressure + compensator value).  The higher loads would slow or eventually stall while the lower loads would still be compensated and take priority of flow.

The concept of using individual elements for flow division uses the same principals that are commonly used for Flow Sharing, but is viewed from a different perspective. Flow Sharing is predominantly used in mobile circuits where simultaneous demand at two or more actuators exceeds the pump flow, a condition that is exacerbated by variation in prime mover torque/speed. Flow sharing, also called post compensation, together with load sensing ensures that individual control orifices always see the same pressure drop by effectively counterbalancing the lighter loads.  The biggest difference between flow sharing and flow dividing using the post compensation method are the number of and type of orifice used.

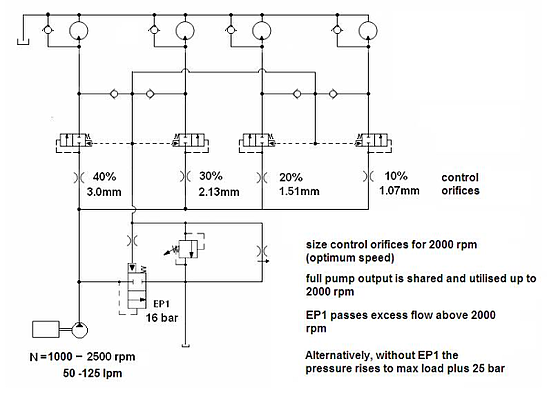

In the flow dividing circuit below, the pressure of the highest load is applied to all EP Logic Element valves such that all orifices see the same pressure drop irrespective of pump flow.  This is the very basic version of a sharing circuit.  If more sophisticated flow sharing was needed, the simple orifices would become proportional valves.


The Individual flow leg orifice sizes are calculated using the desired proportion of the maximum (or optimum) pump flow together with the compensation spring, which is the delta P value.


Consider a system where total pump flow is to be split 4 ways in the ratio 40%; 30%; 20% and 10%

The engine speed range is 1000 to 2500 rpm but normal max speed is 2000 rpm.

Pump output at 2000 rpm is 100 lpm / 27 gpm.

1) Chose a pressure compensator value of 16 bar / 230 psi so when engine speed falls to 1000 rpm the individual orifice drop will still be a reasonable value to provide low flow accuracy (half speed = ¼ pressure drop --- 4 bar / 54 psi in this case).

2) Use the orifice calculation to determine individual orifice sizes based on 16 bar/230psi drop and the flow at 2000 rpm or 100lpm/27gpm.


K  SALES TRAINING Image Library 4 Leg Flow Divider Circuit using Logic Elements resized 600

OK, so you probably can’t get a hold of a 2.13mm drill bit, but you see the principle that a high-flow and more efficient flow dividing solution can be achieved without actually using a spool-type flow divider.  Bear in mind that you can also use needle valves or parallel orifices for each section (as in spool dividers) to achieve the desired ratio.

In comparison with other systems:

Spool divider ratios are normally fixed at manufacture, limited to 2 way splits, require higher pressure drops and are generally less versatile for fine tuning during prototyping.

Flow Sharing applications normally require individual flow modulation.

Flow dividing using the logic elements and orifices in a simple post compensation circuit allows you to; vary ratios by simply changing orifices, divide the flow to a reasonable number of work legs, lower pressure drops, fine tune orifices due to motor leakage or other system inefficiencies, and unload unused flow when operating at above nominal flow conditions.  And this option is quite cost effective compared to standard spool flow dividers and sophisticated flow sharing options.

So, if the question is Flow Dividers or Logic Elements – when designing with cartridge valves, you can make that decision.

In next week’s post, we’ll discuss two additional flow dividing solutions, and some practical applications.  ____________________________________________________________

About the Author:

Jim Eaton is an Applications Engineer at HydraForce LTD in the U.K.  He has been designing hydraulic systems for over 30 years.

Tags: cartridge valves, proportional valves, Load Sensing, Cartridge Valve Pressure Compensators, benefits of cartridge valves, Flow Divider, hydraulic manifold design, pressure compensators
